Controls reference
The basic available Controls are:
Control | Description |
---|---|
Divider | Visual separator for grouping controls |
Text Field | Single-line input for short text |
Text Area | Multi-line input for longer text |
Drop Down | Selection from predefined options |
Toggle Switch | On/off control for boolean settings |
Slider | Numeric value selector with range limits |
Condition | Shows/hides controls based on parameter values |
Other use-case-specific Controls are available:
Control | Description |
---|---|
Aspect ratio | Selection for image/video dimensions with visual previews |
Divider
You can use dividers to visually group or separate controls in ways that are intuitive for users.
Fields
Field | Type | Description | Required |
---|---|---|---|
control | String | The type of control. For a divider, control is always "divider" | Yes |
Example
{
"control": "divider"
}
Text field
Text fields allow users to enter short text values. They are best suited for single-line inputs like names, keywords, or short commands.
Fields
Field | Type | Description | Required |
---|---|---|---|
control | String | The type of control. For a text field, control is always "text_field" | Yes |
label | String | The label text shown above the input field | Yes |
description | String | Optional description text shown below the label | No |
parameter_name | String | Name of the parameter to store the input value | Yes |
default_value | String | Optional default text for the input field | No |
placeholder | String | Optional placeholder text shown when field is empty | No |

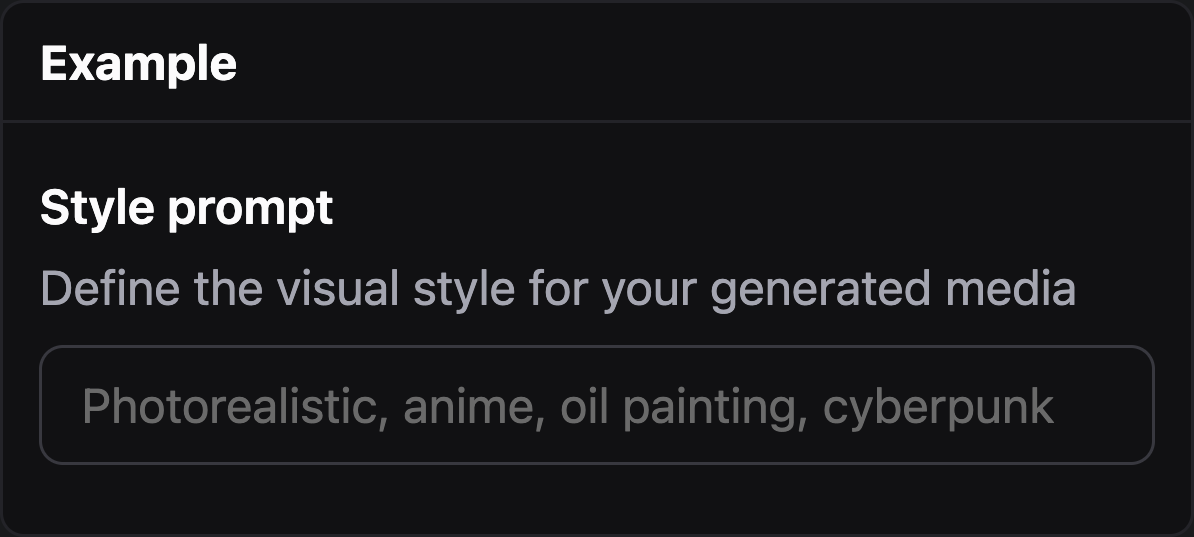

Example
{
"control": "text_field",
"label": "Style prompt",
"description": "Define the visual style for your generated media",
"parameter_name": "style_prompt",
"default_value": "",
"placeholder": "Photorealistic, anime, oil painting, cyberpunk"
}

Text area
Text areas allow users to enter longer text content. They are best suited for multi-line inputs like descriptions, prompts, or detailed instructions.
Fields
Field | Type | Description | Required |
---|---|---|---|
control | String | The type of control. For a text area, control is always "text_area" | Yes |
label | String | The label text shown above the text area | Yes |
description | String | Optional description text shown below the label | No |
parameter_name | String | Name of the parameter to store the input value | Yes |
default_value | String | Optional default text for the text area | No |
placeholder | String | Optional placeholder text shown when field is empty | No |

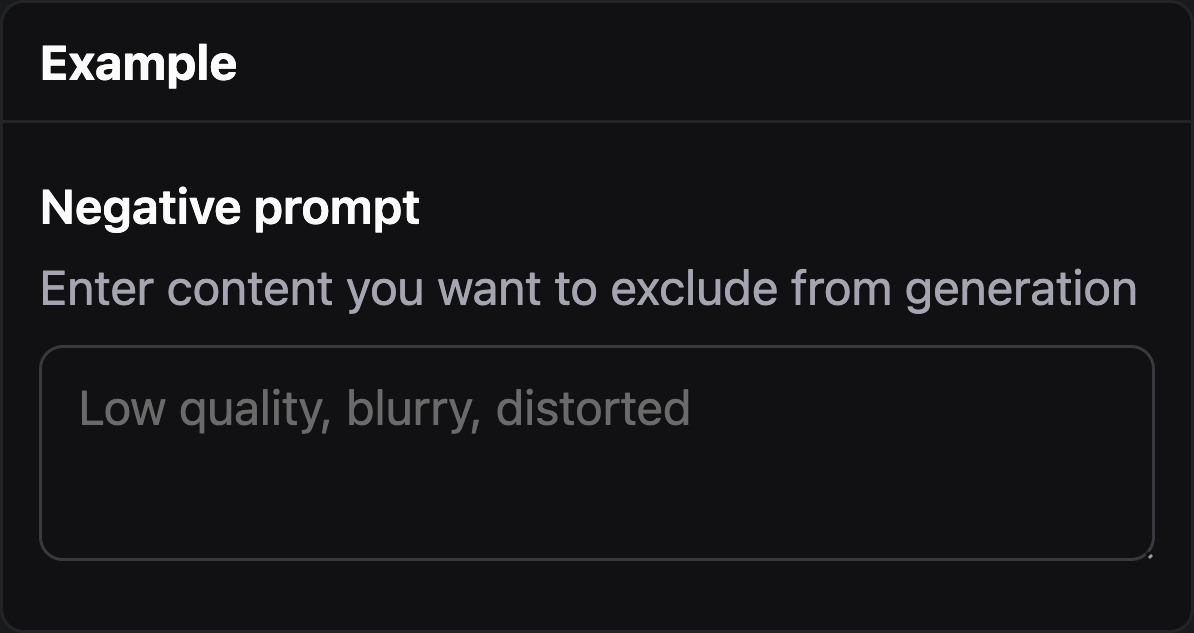

Example
{
"control": "text_area",
"label": "Negative prompt",
"description": "Enter content you want to exclude from generation",
"parameter_name": "negative_prompt",
"default_value": "",
"placeholder": "Low quality, blurry, distorted"
}

Drop down
Dropdowns allow users to select from a predefined list of options. They are ideal for scenarios where users need to choose one option from a limited set of choices.
Fields
Field | Type | Description | Required |
---|---|---|---|
control | String | The type of control. For a dropdown, control is always "drop_down" | Yes |
label | String | The label text shown above the dropdown | Yes |
description | String | Optional description text shown below the label | No |
parameter_name | String | Name of the parameter to store the selected value | Yes |
default_value | String | Optional default selected value | No |
options | Array | List of Options, which are value-name pairs representing the available options | Yes |
Option fields
Field | Type | Description | Required |
---|---|---|---|
value | String | The internal value that will be stored in the parameter | Yes |
name | String | The display text shown to users in the dropdown menu | Yes |
Each option in the options array must be an object containing both a value and name. The value is what gets stored in the parameter and used by your bot's logic, while the name is what's displayed to users in the UI.

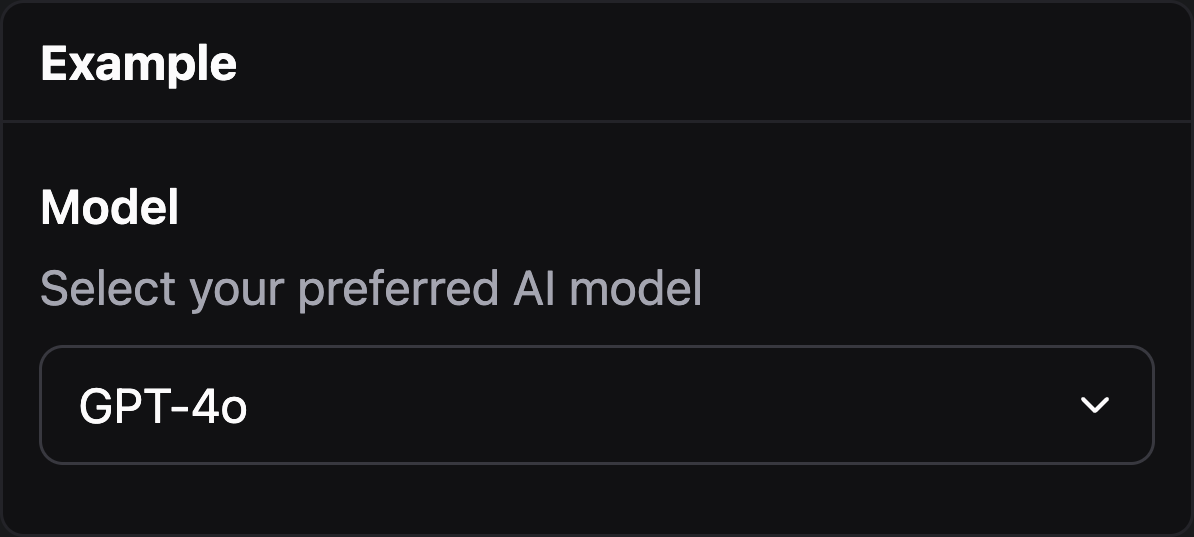

Example
{
"control": "drop_down",
"label": "Model",
"description": "Select your preferred AI model",
"parameter_name": "model",
"default_value": "gpt4o",
"options": [
{"value": "gpt4o", "name": "GPT-4o"},
{"value": "claude4", "name": "Claude 4"},
{"value": "llama4", "name": "Llama 4"}
]
}

Toggle switch
Toggle switches allow users to turn options on or off. They are ideal for boolean settings or enabling/disabling features.
Fields
Field | Type | Description | Required |
---|---|---|---|
control | String | The type of control. For a toggle switch, control is always "toggle_switch" | Yes |
label | String | The label text shown next to the toggle switch | Yes |
description | String | Optional description text shown below the label | No |
parameter_name | String | Name of the parameter to store the boolean value | Yes |
default_value | Boolean | Optional default state of the toggle (true/false) | No |

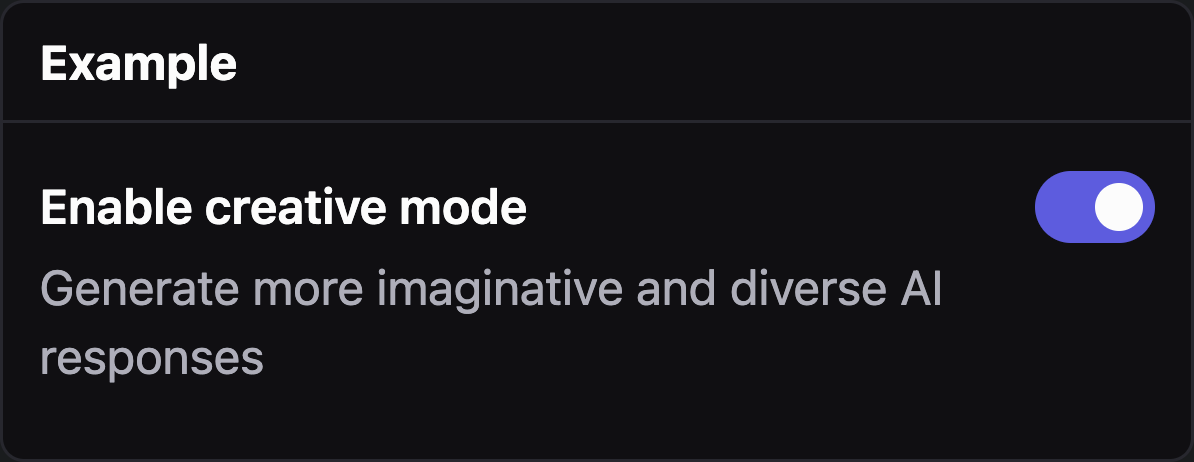

Example
{
"control": "toggle_switch",
"label": "Enable creative mode",
"description": "Generate more imaginative and diverse AI responses",
"parameter_name": "creative_mode_enabled",
"default_value": true
}

Slider
Sliders allow users to select a numeric value within a specified range. They are ideal for settings that require numerical input within defined boundaries.
Fields
Field | Type | Description | Required |
---|---|---|---|
control | String | The type of control. For a slider, control is always "slider" | Yes |
label | String | The label text shown above the slider | Yes |
description | String | Optional description text shown below the label | No |
parameter_name | String | Name of the parameter to store the numeric value | Yes |
default_value | Number | Optional default position of the slider | No |
min_value | Number | Minimum value of the slider range | Yes |
max_value | Number | Maximum value of the slider range | Yes |
step | Number | Increment between values on the slider | Yes |

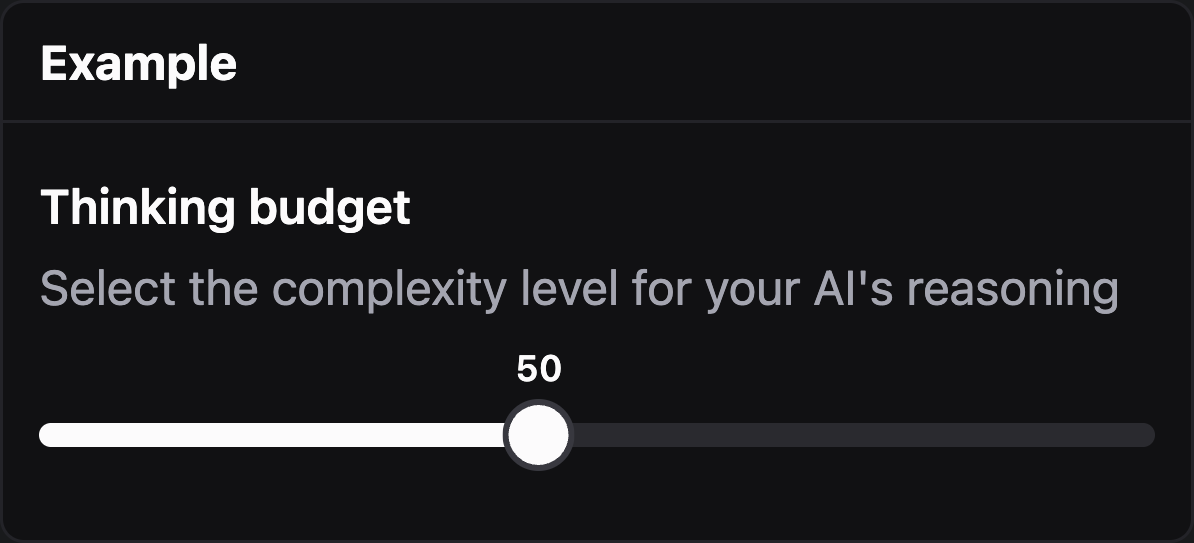

Example
{
"control": "slider",
"label": "Thinking budget",
"description": "Select the complexity level for your AI's reasoning",
"parameter_name": "thinking_budget",
"default_value": 50,
"min_value": 10,
"max_value": 100,
"step": 5
}

Conditional
Conditionals are control wrappers that dynamically hide or show other Controls based on parameter values.
Fields
Field | Type | Description | Required |
---|---|---|---|
control | String | The type of control. For a conditional, control is always "condition" | Yes |
condition | Object | Contains the comparison logic (ComparatorCondition) | Yes |
controls | Array | List of controls to show/hide based on the condition | Yes |
Condition
Field | Type | Description | Required |
---|---|---|---|
comparator | String | The type of comparison. Currently only "equals" is supported | Yes |
left | Object | Left side of comparison (LiteralValue or ParameterValue) | Yes |
right | Object | Right side of comparison (LiteralValue or ParameterValue) | Yes |
Parameter Value
Field | Type | Description | Required |
---|---|---|---|
parameter_name | String | Name of the parameter whose value to use | Yes |
Literal Value
Field | Type | Description | Required |
---|---|---|---|
literal | String, Number, or Boolean | The literal value to use in the comparison | Yes |
Example
{
"control": "condition",
"condition": {
"comparator": "equals",
"left": {
"parameter_name": "output_type"
},
"right": {
"literal": "image"
}
},
"controls": [
{
"control": "slider",
"label": "Image Width",
"parameter_name": "width",
"min_value": 256,
"max_value": 1024,
"step": 64,
"default_value": 512
}
]
}
In this example, the slider control for image width is only shown when the output_type parameter equals "image". The condition can compare either literal values or parameter values on both sides of the comparison.
Aspect ratio
The aspect ratio control lets users choose from predefined aspect ratios with visual previews for easy comparison—especially useful for image and video generation bots.
Fields
Field | Type | Description | Required |
---|---|---|---|
control | String | The type of control. For aspect ratio, control is always "aspect_ratio" | Yes |
label | String | The label text shown above the aspect ratio selector | Yes |
description | String | Optional description text shown below the label | No |
parameter_name | String | Name of the parameter to store the selected aspect ratio | Yes |
default_value | String | Optional default selected aspect ratio | No |
options | Array | List of AspectRatioOptionDefinition objects representing the available options | Yes |
AspectRatioOptionDefinition
Field | Type | Description | Required |
---|---|---|---|
width | Number | The width value for the aspect ratio | Yes |
height | Number | The height value for the aspect ratio | Yes |
value | String | The value to be passed when the option is selected. If not defined, a string with the following format will be passed as the value: [width]:[height] (e.g. “16:9”) | No |

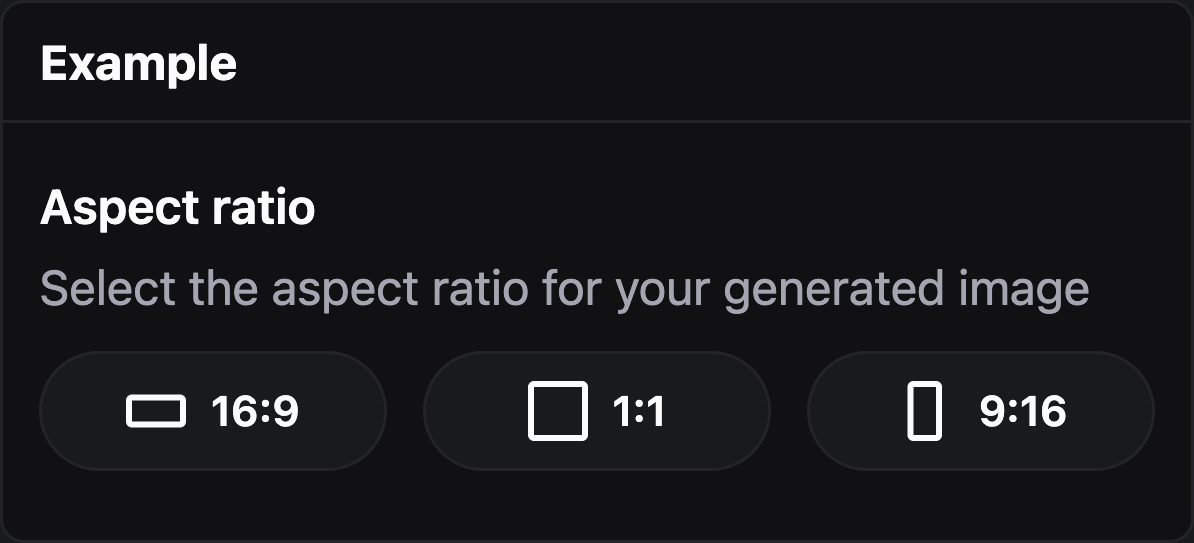

Example
{
"control": "aspect_ratio",
"label": "Aspect ratio",
"description": "Select the aspect ratio for your generated image",
"parameter_name": "aspect_ratio",
"default_value": "square",
"options": [
{"value": "square", "width": 1, "height": 1},
{"value": "landscape", "width": 16, "height": 9},
{"value": "portrait", "width": 9, "height": 16}
]
}

The aspect ratio control will display a visual preview of each ratio option to help users understand the proportions they're selecting.
